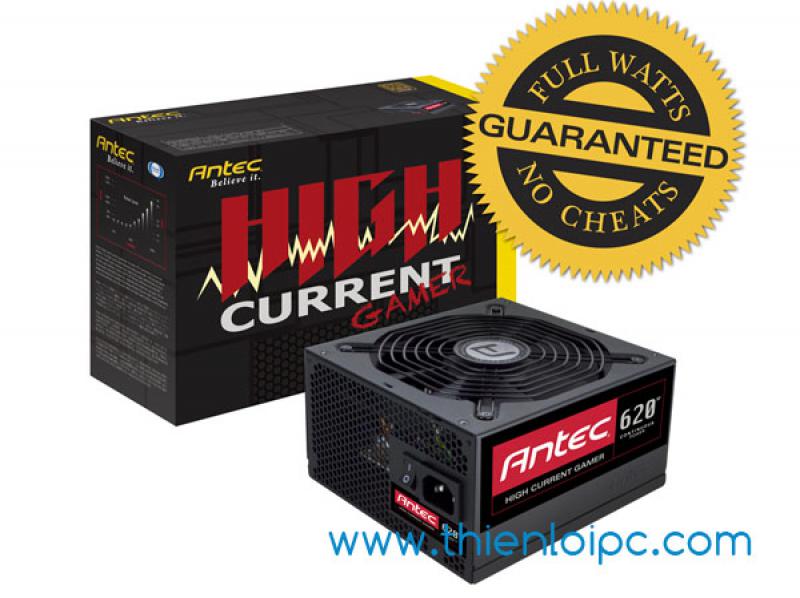

Antec HCG M Series HCG-620M 620W ATX12V / EPS12V SLI Ready CrossFire Ready 80 PLUS BRONZE Certified Modular

Model

Brand

Antec

Model

HCG-620M

Series

HCG M Series

Spec

Type

ATX12V / EPS12V

Maximum Power

620W

Fans

1

PFC

Active

Main Connector

20+4Pin

+12V Rails

Single

PCI-Express Connector

2 x 6+2-Pin

SATA Power Connector

6

SLI

SLI Ready

Haswell Support

Ready

CrossFire

CrossFire Ready

Modular

Modular

Efficiency

Up to 87%

Energy-Efficient

80 PLUS BRONZE Certified

Over Voltage Protection

Yes

Input Voltage

100 - 240 VAC ±10%

Input Frequency Range

50/60 Hz

Input Current

9 - 4.5A

Output

+5V@24A, +3.3V@24A, +12V@48A, -12V@0.8A, +5VSB@2.5A

MTBF

>100,000 Hours

Approvals

UL, cUL, CE, TUV, CB, FCC, GOST-R, CCC, C-Tick, BSMI

Dimensions

3.4" x 5.9" x 6.3"

Weight

4.2 lbs.

Features

Connectors

1 x 20+4-pin Main Connector
1 x 4+4-pin ATX12V / EPS12V Connector
2 x 6+2-pin PCI-E
6 x SATA
6 x Molex
1 x Floppy

Features

High Current Hybrid Cable Management – special 10-pin and 5-pin modular connectors for High Current rail

Quiet 135 mm Double Ball Bearing cooling fan

Stealth Wires All wires darkened for minimal visibility in chassis

All Japanese brand capacitors for reliability

Thermal Manager, an advanced low voltage fan control for optimal heat & noise management

Up to 90% power available on +12V rail

ATX12V version 2.32 and EPS12V version 2.92 compliant

Heavy-duty protection circuitry on all rails prevents damage from a variety of dangers:
- Over Current Protection (OCP)
- Over Voltage Protection (OVP)
- Under Voltage Protection (UVP)
- Short Circuit Protection (SCP)
- Over Power Protection (OPP)
- Surge & Inrush Protection (SIP)
